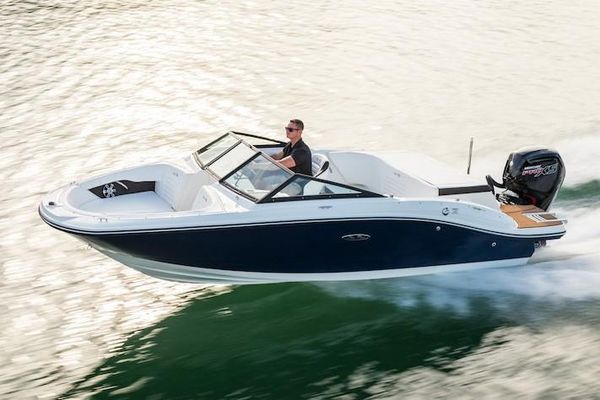

Sea Ray SPX 190 OB - main image

2019 Sea Ray SPX 190 OB

Year 2019
Length 19'6 ft / 5.94 m

With the all-star SPX 190 Outboard of the SPX series, you can live the premium Sea Ray standard of boating at an affordable, family-friendly price. The combination of a very spacious cockpit, versatile option packages, easy handling with big outboard power and stylish Sea Ray design opens up what your weekend can be.

Specifications

Year Built 2019
Category Power
Length Overall 19'6 ft / 5.94 m
Beam 8'4 ft / 2.54 m
Max Draft 2'7 ft / 0.79 m
Number of Passengers 11
Construction Fiberglass
Deadrise Angle 0.33 rad
Min Draft 1'6 ft / 0.46 m
Engines 1
Fuel Tanks 1
Fuel Tank Cap. 110 L
Dry Weight 1,249.19 kg

Engine 1 Specifications

Make: Mercury
Model: Pro XS
Engine Power: 115hp
Type: Outboard 4 Stroke
Hull and Deck
  • Bow & Stern Eyes, Stainless Steel
  • Cleats, Thru-Bolted - 6" Stainless Steel w/ Sea Ray Logos (6)
  • Deck Fuel Fill Plate, Stainless Steel
  • Drain Plug, Brass-Threaded - Garboard
  • Gel Coat, Arctic White
  • Light, Stern (All Around) - Removable
  • Lights, Navigation (Bow)
  • Resin, High-Performance Vinylester
  • Rub Rail, Black PVC w/Vinyl Insert
  • Ski Tow Pylon
  • Stringer System, Fiberglass
  • Swim Platform, Integral w/Stainless Steel, Four-Step Swim Ladder
  • Thru-Hull Fittings
  • Windshield, Custom Five-Piece w/Matte Black Frame, Tempered/Tinted Glass & Walk-Thru
Cockpit
  • Beverage Holders
  • Cockpit Vinyl Color - Ivory (White Base Vinyl w/ Brown Accent Vinyl)
  • Dash, White w/ Color Matched Visor
  • Floor, Finished Fiberglass
  • Glove Box, Vinyl Wrapped & Lockable
  • Grab Handles, Plastic
  • Outlet, 12V Accessory
  • Storage, Ski/Wakeboard w/bMatting & Gas-Assisted Fiberglass Lid
  • Sun Pad w/Port Transom Walkthrough
  • Vinyl, Marine Grade w/Mildew & UV Protection
Seating
  • Bow: Seats w/Cushions & Storage Below, Port & Stbd Bolsters & Center Section Facing Aft
  • Cockpit: Aft Bench Seat w/Sunpad & Insulated Cooler
  • Companion Seat: Bench Seat w/Stowable Forward Seat Cushion & Removable Aft Bolster
  • Helm: Bucket w/Swivel and Slider & Flip-Up Bolster
Helm
  • Alarms, Engine - Oil & Water (Audible)
  • Horn
  • Instrumentation, Custom Sea Ray Backlit w/Glass Lenses & LowGlare Night Lighting (Includes: Fuel, Oil Pressure, Speedometer, Tachometer w/LCD Hour Meter, Trim & Water Temperature)
  • Shift & Throttle Lever w/Trim Switch & Lanyard Stop Switch
  • Steering, Hydraulic Tilt Wheel, Isotta Fiume
  • Stereo, Fusion® SRX400 12V AM/FM w/ Bluetooth™, Wi-Fi Audio Streaming & 2 Pair of Fusion 6.5" Speakers
  • Switch Panel w/Weatherproof Lighted Chrome Toggle Switches
  • Tilt & Trim, Power
Bilge
  • Bilge Pump, 12V Automatic
  • Gel-Coated Compartment
Electrical System
  • Battery Tray w/Mount
  • Fuse Block
  • Wiring, Color-Coded w/Chafe Protection
Fuel System
  • Evaporative Emissions Fuel System
  • Fuel Lines, USCG - Type A-1
  • Fuel Tank w/Anti-Siphon Valve & Electric Sending Unit
Trailer
  • Single Axle, 3,100# Capacity - Painted
  • Bearing Protection
  • Brakes, Free-Backing Hydraulic Surge Disc
  • Lights, Submersible LED
  • Safety Chains
  • Straps, Transom Tie-Down
  • Tongue, Swing Away
  • Tongue Jack, Swivel
  • Winch Stand, Adjustable w/Nylon Strap & Hook
